Command-Line Interface (CLI)

Project Succession includes a command-line interface for automation and headless operation.

Note: CLI access requires a Business plan or higher.

Installation

The CLI is included with Project Succession:

Windows: succession.exe in installation directory
macOS: succession in installation directory
Linux: succession in installation directory

You can add the installation directory to your PATH variable for global access.

Basic Usage

succession <COMMAND> [OPTIONS]

Commands

help

Display help information

succession --help

Shows available commands and options.

Service Management

start-service

Start the Succession backend service

succession start-service

Starts the backend service that runs pipelines.

stop-service

Stop the Succession backend service

succession stop-service

Stops the running backend service.

status

Check if Succession service is running

succession status

Returns the current status of the backend service.

Graph Management

deploy-graph

Deploy a new graph from file

succession deploy-graph <file>

Arguments:

<file>: Path to the graph .json file

Example:

succession deploy-graph C:/pipelines/render.json

Deploys the graph and starts execution. The graph will run in the background with all triggers active.

Output:

✓ Graph deployed successfully!
  Name:             Render Pipeline
  File:             C:/pipelines/render.json
  Status:           Running
  Active workflows: 0

update-graph

Update an existing deployed graph

succession update-graph <file>

Arguments:

<file>: Path to the graph .json file

Example:

succession update-graph C:/pipelines/render.json

Atomically stops the old version and deploys the new version. Preserves deployment time.

Output:

✓ Graph updated successfully!
  Name:             Render Pipeline
  File:             C:/pipelines/render.json
  Status:           Running
  Active workflows: 0

stop-graph

Stop a deployed graph

succession stop-graph <file>

Arguments:

<file>: Path to the graph .json file

Example:

succession stop-graph C:/pipelines/render.json

Stops execution and removes the graph from the deployed list. To run it again, you must redeploy.

Output:

✓ Graph stopped successfully!

list-graphs

List all deployed graphs

succession list-graphs

Shows all currently deployed graphs with their status.

Output:

╔════════════════════════════════════════════════════════════════╗
║                    Deployed Graphs                             ║
╚════════════════════════════════════════════════════════════════╝

  Name:             Render Pipeline
  File:             C:/pipelines/render.json
  Status:           Running
  Active workflows: 2
  ────────────────────────────────────────────────────────────
  Name:             Backup Automation
  File:             C:/pipelines/backup.json
  Status:           Running
  Active workflows: 0
  ────────────────────────────────────────────────────────────

health-check

Check health of deployed graph(s)

# Check all graphs
succession health-check

# Check specific graph
succession health-check <file>

Arguments (optional):

<file>: Path to specific graph to check. Omit to check all graphs.

Examples:

# Check all deployed graphs
succession health-check

# Check specific graph
succession health-check C:/pipelines/render.json

Output (specific graph):

  Status:           Healthy
  Active workflows: 2
  Task count:       5
  Uptime:           3600 seconds

Output (all graphs):

╔════════════════════════════════════════════════════════════════╗
║                    Graph Health Status                         ║
╚════════════════════════════════════════════════════════════════╝

  Graph:            C:/pipelines/render.json
  Status:           Healthy
  Active workflows: 2
  Task count:       5
  Uptime:           3600 seconds
  ────────────────────────────────────────────────────────────
  Graph:            C:/pipelines/backup.json
  Status:           Degraded
  Active workflows: 0
  Task count:       3
  Uptime:           1200 seconds
  Last error:       Connection timeout
  ────────────────────────────────────────────────────────────

License Management

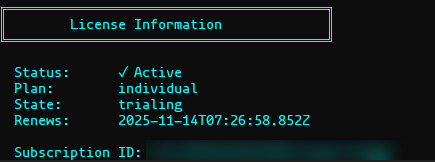

license-status

Show current license status

succession license-status

Displays:

Current plan
License status (active, expired, etc.)
Expiration date (if applicable)

This command does NOT require an active license.

clear-cache

Clear license cache

succession clear-cache

Clears the cached license information, forcing a fresh license check on next use.

This command does NOT require an active license.

Global Options

-h, --help: Show help information

License Requirements

Most CLI commands require:

Active License: License must be active (not expired or canceled)
Business Plan or Higher: CLI access is not available on Indie or Studio plans

Commands that work without a license:

help
license-status
clear-cache

Exit Codes

The CLI uses standard exit codes:

Code	Meaning
0	Success
1	General error or license check failed

Example Workflows

Deploy and Manage a Graph

# Start the backend service
succession start-service

# Deploy a graph
succession deploy-graph C:/pipelines/render.json

# Check status
succession status

# List all deployed graphs
succession list-graphs

# Check health
succession health-check

# Update the graph after making changes
succession update-graph C:/pipelines/render.json

# Stop when done
succession stop-graph C:/pipelines/render.json
succession stop-service

Deploy Multiple Graphs

# Start the service
succession start-service

# Deploy multiple graphs simultaneously
succession deploy-graph C:/pipelines/render.json
succession deploy-graph C:/pipelines/backup.json
succession deploy-graph C:/pipelines/alerts.json

# Check all graphs are running
succession list-graphs

# Monitor health of all graphs
succession health-check

# Stop a specific graph
succession stop-graph C:/pipelines/backup.json

# List remaining graphs
succession list-graphs

Error Messages

License Errors

“Active license required to use the CLI”

Your license is expired or inactive
Check your subscription in the Succession application

“CLI access requires Business plan or higher”

Your current plan doesn’t include CLI access
Upgrade to Business plan

“License check failed”

Cannot validate license (network issue, etc.)
Try succession clear-cache and retry

Service Errors

“Service not running”

Backend service isn’t started
Run succession start-service first

“Failed to connect to service”

Service may be running on different port
Check settings in the GUI application

Graph Errors

“Graph file not found”

The specified file path doesn’t exist
Check the path and try again with the correct location

“Graph already deployed”

A graph at that file path is already running
Use succession update-graph <file> to redeploy it
Or use succession stop-graph <file> first, then deploy again

“Graph not found”

Trying to update or stop a graph that isn’t deployed
Use succession list-graphs to see deployed graphs
Deploy it first with succession deploy-graph <file>

“Service responded with an error”

The graph file may be invalid or corrupted
Check the graph file format in the GUI application
Review service logs for detailed error information

Configuration

The CLI reads configuration from the Succession settings file:

Windows: %USERPROFILE%/.project-succession/settings.json
macOS/Linux: $HOME/.project-succession/settings.json

Settings configured in the GUI application (backend address, port, etc.) are used by the CLI.

Backend Configuration

Default backend address: http://127.0.0.1:3000

To change the backend address:

Open Project Succession GUI
Go to Settings → Backend
Update the address and port
Restart the service for changes to take effect

Path Handling

Path Normalization

File paths are automatically normalized to ensure consistency:

Backslashes (\) are converted to forward slashes (/)
Windows extended path prefix (\\?\) is automatically removed
Both absolute and relative paths are supported

Examples:

# These are equivalent on Windows:
succession deploy-graph C:\pipelines\render.json
succession deploy-graph C:/pipelines/render.json
succession deploy-graph "C:\pipelines\render.json"

Path Recommendations

For Production:

Use absolute paths for reliability
Avoid spaces in paths (or quote the path)
Use forward slashes for cross-platform compatibility

Example:

# Good - absolute path with forward slashes
succession deploy-graph C:/pipelines/production.json

# Also good - quoted path with backslashes (Windows)
succession deploy-graph "C:\pipelines\production.json"

# Avoid - relative path (depends on current directory)
succession deploy-graph ./pipeline.json

Advanced Usage

Automation and Scripting

The CLI is designed for automation and can be integrated into scripts:

Bash/Shell Scripts:

#!/bin/bash
# Check if service is running, start if not
if ! succession status > /dev/null 2>&1; then
    succession start-service
fi

# Deploy with error handling
if succession deploy-graph /pipelines/critical.json; then
    echo "Deployment successful"
else
    echo "Deployment failed" >&2
    exit 1
fi

Windows PowerShell:

# Check service status
$status = succession status
if ($LASTEXITCODE -ne 0) {
    succession start-service
}

# Deploy multiple graphs
Get-ChildItem C:\pipelines\*.json | ForEach-Object {
    succession deploy-graph $_.FullName
}

CI/CD Integration

Integrate with continuous deployment:

# Example GitHub Actions workflow
- name: Deploy Pipeline
  run: |
    succession start-service
    succession deploy-graph /pipelines/production.json
    succession health-check

Monitoring Integration

The health-check command returns the health status but always exits with code 0 if it can successfully query the backend (even if graphs are unhealthy). For automated alerting, you need to parse the output:

# Cron job example - parse output for monitoring
#!/bin/bash
output=$(succession health-check 2>&1)
if echo "$output" | grep -q "Degraded\|Unhealthy"; then
    /path/to/alert-script.sh "$output"
fi

Note: The health-check command only fails (exit code 1) if:

The backend service is not running
There’s a connection error
The command syntax is invalid

For programmatic health monitoring, use the HTTP API directly (see Graph Deployment Guide).
